Metal Fabricate Decorative Wire Mesh For Building Facades Aperture 17.5mm
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
Specification of Decorative Wire Mesh
___________________________________________________________________________________
Material | Stainless steel | Opening Area | 43% |
Warp Diameter | 2.5mmx3.5mm | Mesh Thickness | 6mm |
Warp Pitch | 9mm | Surface | pvd color |
Weft Diameter | 2.5mmx3.5mm | Max High | to your order to cut |
Weft Pitch | 9mm | Max Wide | 4000mm |
Weight | 8.1kgs/m2 | Application | Interior / Exterior |
Decorative Wire Mesh details
___________________________________________________________________________________
| 304, 316, 314, 316L, 310, and etc stainless steel wire, or galvanized carbon steel wire |
| |
| PVD color, pvdf color, antique brass color |
| flat surface, rust-proof, corrosion resistance, sturdy and durable, heavy load capacity, high anti-pressure ability, high temperature resistance |
| 1.5mm, 2mm, 3mm or as requirements |
Decorative wire mesh accessories
1) top : woven-in round bar, hook attachment
2) intermediate:woven-in round bar, plvot attachment
3) bottom: woven-in round bar, tension spring,eyebolt spring

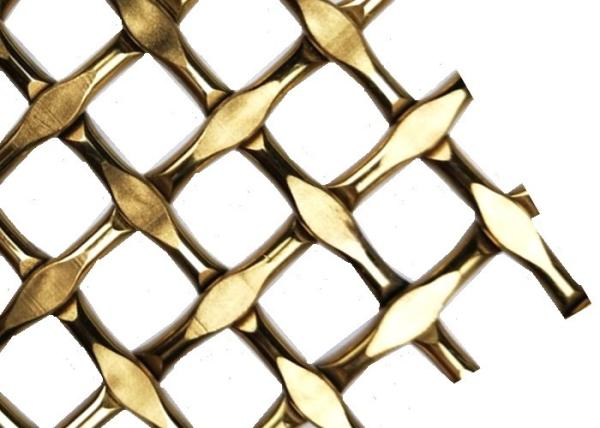

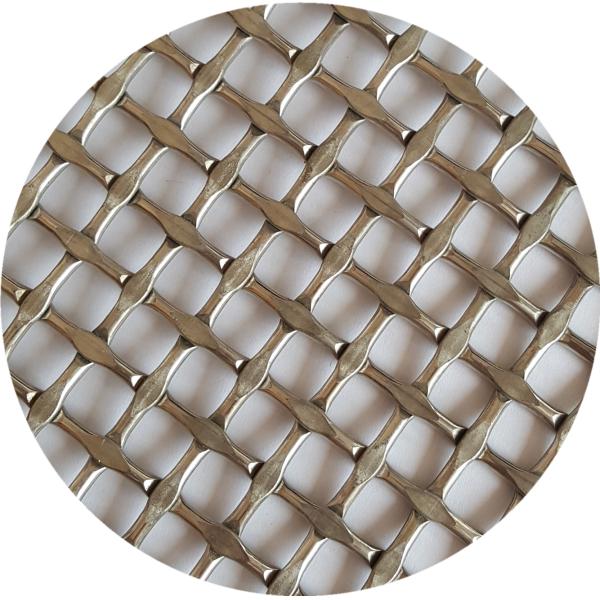

pictures of Decorative Wire Mesh
___________________________________________________________________________________
Application of Brass Plated Decorative Wire Mesh
_______________________________________________________________________________________________
used as curtains, screens for dining hall,isolation in hotels ceiling decoration, animal containment, a stair channel
high grade isolation interior decoration of hotels, wire mesh facades, partition and screens, staircases isolation screen,
elevator cabins screen, floor covering fabrics,shade screens, metal draperies for walls.
decorative wire mesh length and width can be changed according customer requirements.
