Quarry Crusher Non Blinding Polyurethane Screen Panels Modular 2ft X 1ft

Quarry Crusher Non Blinding Polyurethane Modular Screen Panels

Specifications

Modular polyurethane screen is manufactured from specially formulated polyurethane and high

tensile embedded steel frame. Combined with wear resistance polyurethane and high tensile

strength steel frame, modular polyurethane screen possesses excellent performance in separating

and screening industry. Similar as polyurethane dewatering screen, modular polyurethane screen

also has various connection types, including the bolts connection type, mosaic connection type,

press bar connection type and hook connection type. Various connection types can fit different

machines and different applications. It is the most versatile and cost effective modular system.
Material: polyurethane material and embedded steel frame.
Thickness:31mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm
Aperture size:5mm - 50mm.
Panel Size:300*300mm 305*305mm 610*305mm 630*300mm 750*300mm etc.
Aperture type:square, rectangular and round.
Connection type: mosaic connection, bolts connection, press bar connection and hook connection.

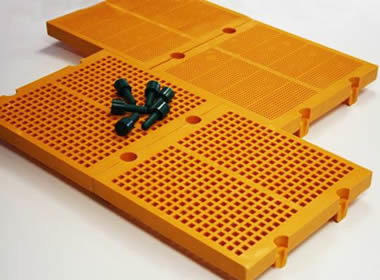

Detailed Images Of The Polyurethane Modular Screen Panels

Modular PU screen panel with rectangular holes.	Modular PU screen panel with round holes.
Mosaic connection type of modular PU screen mesh.	Bolts connection type of modular PU screen p
Press bar connection type of modular PU screen panel	Hook connection type of modular PU screen mesh.

Features
1. High screening Efficiency---2-5 times of the ordinary screen
2. Large bearing capacity---2.5 times more than rubber sieve
3. Long service life--- Can be used for six months to more than one year
4. Good abration and corrosion resistance--- condition of using water or oil as the medium.
5. Maintanance and replacement is low--- Hole can’t be plugged& washing-free
6. Low noise---it has well vibration-absorbing performance
7. Rational design of the screen hole---limit size of the particleswill not block mesh.
8. Widely used in mining, metallurgy, coal, coking, chemical and other industries.
9. Good wet resistant performance---work on the water condition

Applications
The modular polyurethane screen mesh can fit various vibrating screens:
Steel plants
Mining industry
Cement plants
Mineral beneficiation industry
Power plants
Coal washing
Sand
Gravel separating and screening

Package

non blinding polyurethane screen panels modular

polyurethane screen panels 2ft x 1ft

2ft x 1ft pu screen panel
