M3 - M10 Flanged Capacitor Discharge Studs Copper Plated Mild Steel Weldable

Brand Name : HUIHAO

Model Number : Capacitor Discharge (CD) Weld Studs

Certification : ISO

Place of Origin : China

MOQ : Negotiable

Payment Terms : L/C, T/T, Western Union , paypal

Supply Ability : 100000pcs per 20 days

Delivery Time : 5-8 work days

Packaging Details : 50pcs per cases,6 small cases in a box 48 boxes on a pallet

Product name : Copper Plated Mild Steel Flanged Capacitor Discharge (CD) Weld Studs

Material : Mild steel or stainless steel or aluminum or brass

Surface finish : Copper plated

Size : M3-M10

Contact Now

M3 - M10 Copper Plated Mild Steel Flanged Capacitor Discharge (CD) Weld Studs

Introduction & Specifications

1) Capacitor Discharge weld studs are designed to be welded to thin gauge sheet material

using tip ignition according to the capacitors discharge welding process.

2) Capacitor Discharge weld studs are available in many different sizes, from a base diameter

of a 2 mm stud up to 12 mm.

3) Standard material for CD Studs are: Low Carbon Copper Flashed Steel, Stainless Steel,

Aluminum Alloy, and Brass.

4) Other grades, i.e. AISI 316 (A4), AISI 310 are available on request.

5) The stud flange is designed according to EN ISO 13918.

6) Studs made of steel 4.8 are protected against corrosion by copper coating.

(Thickness : 3 to 5 µm)

M3 - M10 Flanged Capacitor Discharge Studs Copper Plated Mild Steel Weldable Stud (Inches)
D FD MIN L
2-56 0.156 0.250
4-40 0.187 0.250
6-32 0.218 0.250
8-32 0.250 0.250
10-32 0.255 0.250
10-24 0.255 0.250
1/4-20 0.325 0.375
5/16-18 0.390

0.500
3/8-16 0.437 0.500

M3 - M10 Flanged Capacitor Discharge Studs Copper Plated Mild Steel Weldable Stud (Metric)
D MAX FD MIN L
M3x0.5 5.3 6mm
M4x0.7 6.3 6mm
M5x0.8 7.3 6mm
M6x1.0 8.3 10mm
M8x1.25 10.8 10mm
M10x1.5 11.9 16mm

MATERIAL MILD STEEL STAINLESS STEEL ALUMINUM BRASS
C - 0.23% max.
P - 0.04% max.
Mn - 0.90% max.
S - 0.05% max.		 AISI grade
302 standard
304/316 available upon request		 Alloy 1100 & 5000 Series
Other alloys available upon request		 Alloy (lead free) 70 - 30 std.
Other alloys available upon request
MECHANICAL PROPERTIES Tensile- 60,000 psi (min.)
Yield - 50,000 psi (min.)		 Tensile - 85,000 psi (min.)
Yield - 40,000 psi (min.)		 Values for various alloys available upon request Tensile - 70,000 psi (min.)
Yield - 50,000 psi (min.)
PLATING Copper plating is standard Does not apply to Stainless
ANNEALING Studs are annealed where required Studs are annealed where required

Detailed Image Of The ​Flanged Capacitor Discharge (CD) Weld Studs

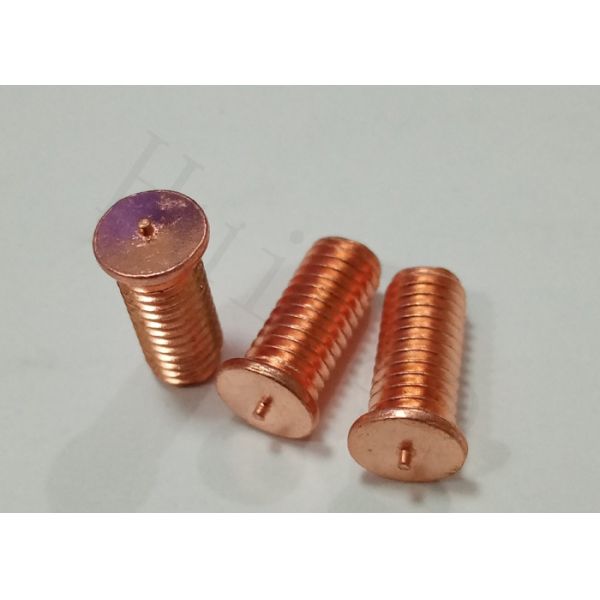

1. M5x12 Copper Plated Mild Seel Flanged Capacitor Discharge (CD) Weld Studs

M3 - M10 Flanged Capacitor Discharge Studs Copper Plated Mild Steel Weldable

2. M6x15 Aluminum Flanged Capacitor Discharge (CD) Weld Studs
M3 - M10 Flanged Capacitor Discharge Studs Copper Plated Mild Steel Weldable

3. M5x8 Stainless Steel 304 Flanged Capacitor Discharge (CD) Weld Studs

M3 - M10 Flanged Capacitor Discharge Studs Copper Plated Mild Steel Weldable

Package And Delivery Of The Capacitor Discharge (CD) Weld Studs

Packing:

50pcs per cases,

6 small cases in a box,

48 boxes on a pallet.

Delivery:

Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.

FAQ Of Huihao Hardware Mesh Product Limited.

Huihao Hardware Mesh Product Limited manufactured the following listed insulation pins and

washers with good quality and price, if you have interest purchasing from China, our company

definitely is a good choice for you.

Insulation Pins Insulation Washers And Accessories
Perforated base insulation hangers Self locking washers
Self stick insulation pins Dome cap washers
Lacing anchors Insulation clips
CD weld pins Plastic insulation anchors
BI metallic pins Insulation discs
Insulation fixing anchors Stainless steel O rings
J hooks Stainless steel D rings
Impaling clips
Solar panel clips
