Introduction To The CD Welding Insulation Nail Pins

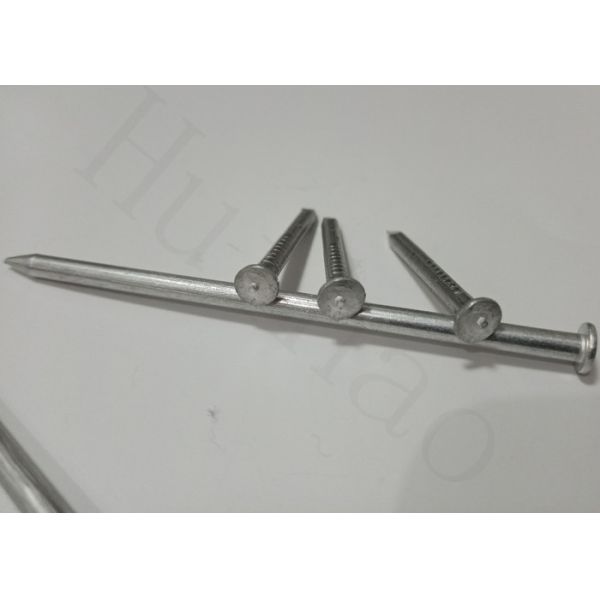

1. The CD welding pins is a low carbon steel, stainless steel or aluminum weld pin that is ideal to apply with pin welding or stud welding equipment.

2. Manufactured with a standard capacitor discharge weld tip and flange, the CD welding pins are popularly used as an insulation fastener, in combination with self locking washers (or “speed clips”) to secure insulating material.

3.Materal: mild steel, stainless steel and aluminum

4.Plating:mild steel pins are copper plated

5.Washers:various types of steel, stainless steel and aluminum self locking washers

6.Standard nail point is used for most applications, nut also available

Specification Of The CD Welding Pins

1.Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.

2. Nail point is standard - available with "blunt end" as special order.

3. Insulation CD welding pins simplify the permanent attachment of insulation to just about any kind of construction metal surface.

4. They can be applied quickly and easily using standard CD or Arc stud welding equipment.

5. Weld pins are available in different styles to cover a wide variety of applications.

6. Some factors to consider regarding the pin style needed for your job would be the base metal type size and surface condition, and also the welding equipment to be used.

	Size	D	FD(Steel)	FD(Aluminum)	L
	14GA	0.08"	0.160"	---	3/4"
					1"
					1-1/2"
					2"
					2-1/2"
					3"
	12GA	0.105"	0.180"	0.230"	3/4"
					1"
					1-1/2"
					2"
					2-1/2"
					3"
					3-1/2"
					4"
					4-1/2"
					5"
					5-1/2"
					6"
					7"
					8"
	3mm	0.118"	0.190"	0.240"	25mm
					30mm
					35mm
					40mm
					45mm
					50mm
					55mm
					60mm
					65mm
					70mm
					75mm
					100mm
					125mm
					150mm
	10GA	0.135"	0.195"	0.250"	1"
					1-1/2"
					2"
					2-1/2"
					3"
					3-1/2"
					4"
					4-1/2"
					5"
					5-1/2"
					6"
					7"
					8"
					9"
